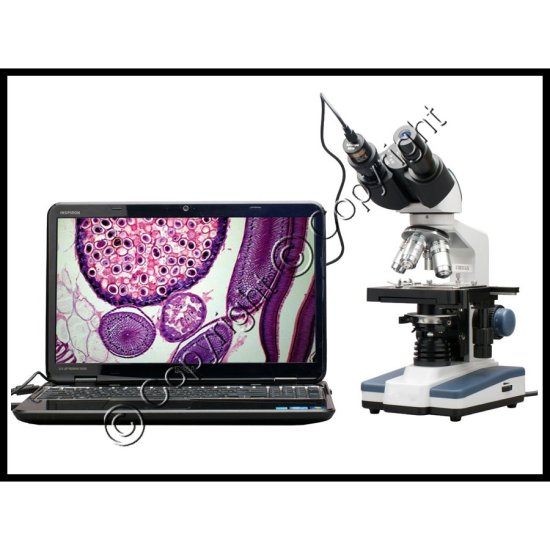

LED Binocular Microscope w/ 3D Stage & 1.0MP USB Imager 40X-2500X

Key Features:

  • Five widefield magnification settings: 40X, 100X, 250X, 400X, 1000X & 2500X
  • Professional 30 degree inclined 360 degree swiveling Siedentopf binocular head
  • Sturdy framework with 3-D double layer mechanical stage, coaxial coarse & fine focusing, Abbe condenser, iris diaphragm and color filter
  • Powerful single bulb LED illumination with dimmer
  • 1.0MP digital imager captures still images and streams live videos, with user-friendly editing, processing and measurement software compatible with Windows 2000/XP/Vista/7/8
  • Descriptions:

    Our new binocular compound microscope with 1.0MP USB imager (camera) is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for a range of people from students in high school to teachers including those with a major in biology, or enrolled in medical school. It comes with a professional Siedentopf binocular head, double layer mechanical stage, course & fine focusing, LED illumination, and a 1.0MP USB digital imager. There are five magnification settings: 40X, 100X, 250X, 400X, 1000X & 2500X. The 1.0MP imager captures microscope still images and streams live videos on your computer screen. The user-friendly editing, processing and measuring software included is compatible with Windows 2000/XP/Vista/7/8. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches. Your product will arrive in a factory sealed box.

    Microscope Features :

  • 30 degree inclined 360 degree swiveling Siedentopf binocular head
  • High quality precise optical glass elements
  • Five magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500X
  • Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
  • Two pairs of widefield eyepieces: WF10X and WF25X
  • Adjustable interpupillary distance
  • Adjustable ocular diopter
  • Variable intensity illumination
  • Coaxial coarse and fine focus adjustment
  • Focusing knobs are on both sides of the microscope
  • Stage upward moving lock protects objectives and slides
  • Stain-resistant double layer mechanical stage
  • NA1.25 Abbe Condenser with iris diaphragm & filters
  • Rack and pinion adjustment condenser
  • 1.0MP high quality color digital imager with USB2.0
  • Captures still images, records and streams live video on your computer
  • Saves still images in BMP, TIFF, JPG, PICT, PTL and other formats
  • Measures lengths, angles, areas and etc. across images
  • Edits images on your computer in a manner similar to Photoshop
  • User-friendly software compatible with Windows 2000/XP/Vista/7/8
  • Life-time free software upgrades
  • Quick and easy USB2.0 connection
  • Simple installation and operation
  • Specifications :

  • Eyepieces: widefield, WF10X and WF25X
  • Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
  • Head: 30 degree inclined 360 degree swiveling binocular
  • Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)
  • Adjustable ocular diopter
  • Nosepiece: revolving quadruple
  • Mechanical Stage: 3-D double layer
  • Size: 4-5/8" x 5" (118mm x 127mm)
  • - Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)
  • Condenser: NA1.25 Abbe condenser with iris diaphragm
  • Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
  • Focusing: coaxial coarse & fine knobs on both sides
  • Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
  • Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm0
  • Packing List :

  • One Siedentopf Binocular Microscope Head
  • One Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination
  • Four DIN Standard Objectives, 4X, 10X, 40X and 100X
  • One Pair of Widefield 10X Eyepieces
  • One Pair of Widefield 25X Eyepieces
  • One Blue Color Filter
  • One Dust Cover
  • Sample Immersion Oil
  • User's Microscope Manual
  • One 1.0MP USB2.0 Digital Imager
  • One 6' (1.8m) USB Cable
  • One CD with Software, Driver and User's Instructions
  • Computer not included.




    Always Free Shipping

    $344.95

    Add to Cart:
